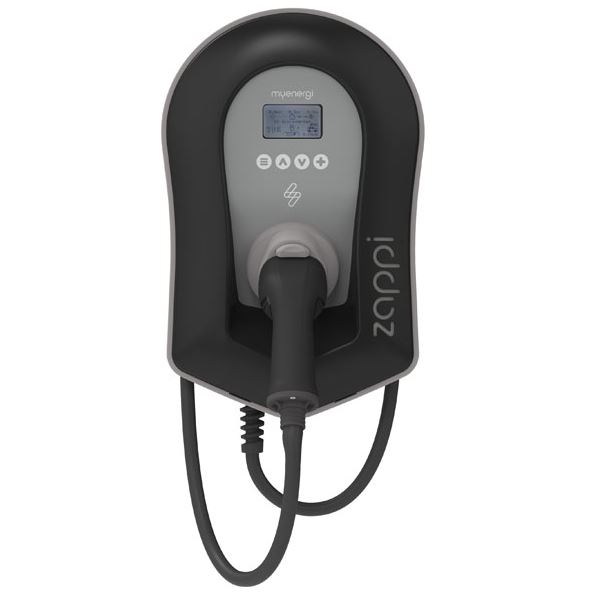

The myenergi zappi-207tb 7kW electric vehicle charger features a 6.5m tethered cable, integrated holster for the plug and a black colour scheme.
The charger incorporates the latest electrical protection devices required for safe operation, even during supply faults.
The Zappi Chargepoint is BS 7671 18th Edition ready and includes an integrated RCD and Earth fault detection feature which removes the need for a separate earth electrode.
- Colour: black
- 6.5m tethered cable
- 7kW output power
- Advanced safety features built-in
- Smart features: control zappi using the myenergi app (requires optional Hub, 65-4041)
- Eligible for OZEV EVHS and WCS grants (requires optional Hub, 65-4041)
| General Specification | |
| Product Description: | myenergi zappi 7kW single phase tethered black |
| Colour: | Black |
| Supplier Code: | zappi-207tb |
| Product Type | AC Electric Vehicle Charging Station |
| Dimensions (L x W x D) | 439 x 282 x 122mm |
| Weight | 7.305kg |
| Connector Type | Type 2 plug |
| Cable length | 6.5m |
| Warranty | 3 years |
| Mounting Options | Wall |
| Electrical Specification | |
| Mains Incoming Supply | Single Phase |
| Maximum current (Amps) | 6 to 32A |
| Charging power | 7kW |
| Maximum Input Cable Size | 5 Core x 6mm² |
| Earth-Neutral Fault Detection | Yes |
| DC Leakage protection Included | Yes |
| RCCB/RCBO Included | Yes – Integral 30mA Type A RCCB (EN 61008) + 6mA DC protection (EN 62955) |
| Nominal frequency | 50Hz |
| Degree of protection (IP) | IP65 |
| Impact Strength (IK) | – |
| Operating temperature | -25°C to 40°C |
| Storage temperature | – |
| Number of Output Connectors | 1 |
| EVHS OZEV Approved | Yes –with Hub supplied separately (65-4041) |
| WCS OZEV Approved | Yes –with Hub supplied separately (65-4041) |
| Connectivity | 868MHz for optional sensor/monitoring |
| User Identification | None |
| User Interface | Graphical backlit LCD | App |
| Charger Status Information | Graphical backlit LCD | Multicolour LED |
| Static Load Management | Yes |
| Dynamic Load Management | Yes |
| OCPP | No |
| Energy Meter | No |
| Solar Integration | Yes – add optional CT |
