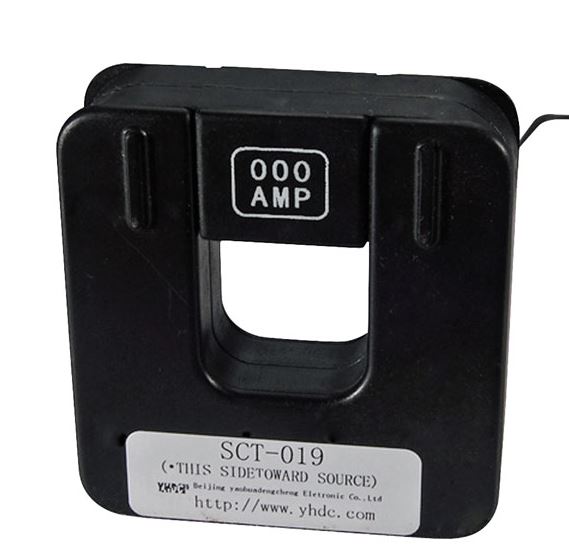

This 100A split core current transformer is used for both automatic load management and Solar Integration with the EO Mini Pro V2 Electric Vehicle Charging Stations. The transformer is of the split coil type that can be placed around a building’s power incoming tails without disconnection of supply.

• Current rating 100A AC
• Permalloy core
• 2m Cable lead
• Operating temperature -25°C to +60°C
• Dielectric strength 3500V AC
• Output voltage 0.333V
• Accuracy 1%
• Working frequency 20Hz to 1KHz
